Pythonでゲーム木を描く

# tic_tac_toe_tree.py
# Version: 0.1.0
# 3目並べ（Tic-Tac-Toe）の最善手を探索し、そのゲーム木を描画するプログラム
# 使用ライブラリ: networkx, matplotlib.pyplot
# Copyright © 2026 たかはしのんき.  The MIT License.

import networkx as nx
import matplotlib.pyplot as plt

# --- 1. 盤面の対称性（正規化）のロジック ---

def get_canonical(board):
    """盤面の回転・反転8パターンの中で最小のものを返す"""
    def rotate(b):
        return (b[6], b[3], b[0], b[7], b[4], b[1], b[8], b[5], b[2])
    def flip(b):
        return (b[2], b[1], b[0], b[5], b[4], b[3], b[8], b[7], b[6])

    states = [board]
    curr = board
    for _ in range(3): # 回転3回
        curr = rotate(curr)
        states.append(curr)
    curr = flip(board)
    states.append(curr)
    for _ in range(3): # 反転後の回転3回
        curr = rotate(curr)
        states.append(curr)
    return min(states)

# --- 2. ミニマックス法（評価値計算） ---

def check_win(board, player):
    wins = [(0,1,2), (3,4,5), (6,7,8), (0,3,6), (1,4,7), (2,5,8), (0,4,8), (2,4,6)]
    return any(all(board[i] == player for i in line) for line in wins)

memo = {}
def minimax(board, is_maximizing):
    state = tuple(board)
    if state in memo: return memo[state]

    if check_win(board, 'X'): return 10
    if check_win(board, 'O'): return -10
    if '.' not in board: return 0

    if is_maximizing:
        best = -float('inf')
        for i in [j for j, c in enumerate(board) if c == '.']:
            board[i] = 'X'
            best = max(best, minimax(board, False))
            board[i] = '.'
    else:
        best = float('inf')
        for i in [j for j, c in enumerate(board) if c == '.']:
            board[i] = 'O'
            best = min(best, minimax(board, True))
            board[i] = '.'
    memo[state] = best
    return best

# --- 3. 最善手グラフの構築（対称性を集約） ---

def build_reduced_tree(board, player, G):
    curr_canon = get_canonical(board)
    if curr_canon in G: return

    status = 'draw' if '.' not in board else 'in_progress'
    if check_win(board, 'X'): status = 'X wins'
    elif check_win(board, 'O'): status = 'O wins'

    G.add_node(curr_canon, status=status)
    if status != 'in_progress': return

    # 現在の局面での最善のスコアを取得
    is_max = (player == 'X')
    best_score = minimax(list(board), is_max)

    for i in [j for j, c in enumerate(board) if c == '.']:
        next_board = list(board)
        next_board[i] = player
        # この手が最善手（スコアが一致）か確認
        if minimax(next_board, not is_max) == best_score:
            next_canon = get_canonical(tuple(next_board))
            build_reduced_tree(tuple(next_board), 'O' if player == 'X' else 'X', G)
            G.add_edge(curr_canon, next_canon)

# --- 4. 実行と描画 ---

G = nx.DiGraph()
build_reduced_tree(tuple(['.']*9), 'X', G)

# レイアウト（PyGraphvizがない場合は spring_layout を使用）
try:
    pos = nx.nx_pydot.graphviz_layout(G, prog='dot')
except:
    pos = nx.spring_layout(G, k=0.5)

# ラベル作成（正規化された盤面を表示）
labels = {n: f"{''.join(n[:3])}\n{''.join(n[3:6])}\n{''.join(n[6:])}" for n in G.nodes()}

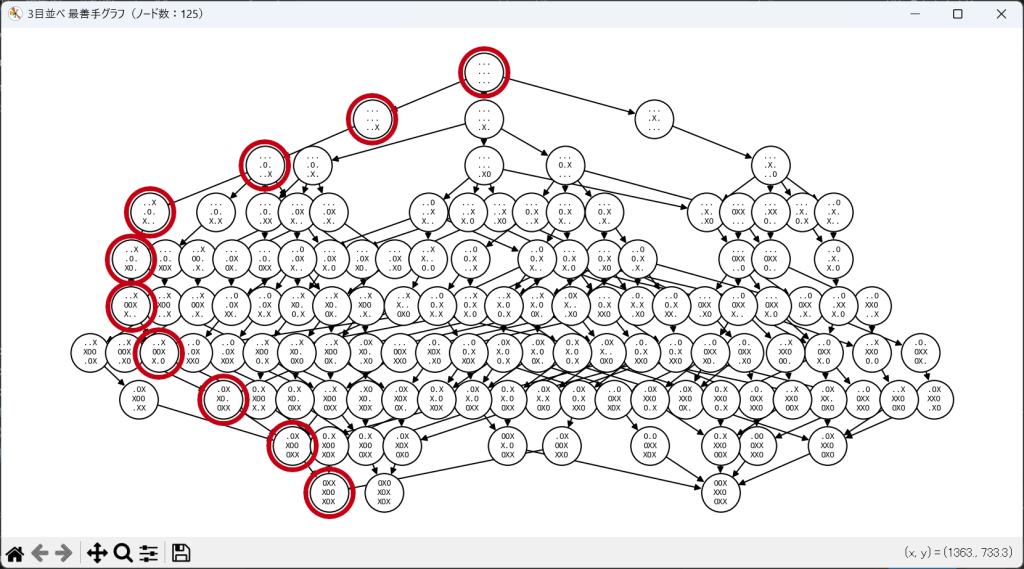

plt.figure(figsize=(15, 10), num=f"3目並べ 最善手グラフ（ノード数：{len(G.nodes())}）")
nx.draw(G, pos, labels=labels, with_labels=True,
        node_size=900, font_size=6, font_family='monospace',
        node_color='white', edgecolors='black', arrows=True)

plt.show()
